INTERPOLATE

Previous pageReturn to chapter overviewNext page

INTERPOLATE transforms (disaggregates) a lower-frequency timeseries to a higher-frequency timeseries, for instance converting annual data to quarterly data, optionally using a higher-frequency indicator series (use COLLAPSE to perform the inverse transformation). The statement ignores the global time period, and a local time period cannot be set.



Instead of the INTERPOLATE statement, you may alternatively use the similar interpolate() function, for instance x!a.interpolate(); (see under functions).






Syntax



interpolate < print > highfreq = lowfreq  indicator  method  indicatormethod;



highfreq

Higher frequency timeseries. Frequency can be indicated with suffix !a, !q, !m or !w. Banknames may be used. Lists of names can be used, like for instance {#m}.

lowfreq

Lower-frequencey timeseries. Frequency can be indicated with suffix !a, !q or !m. Banknames may be used. Lists of names can be used, like for instance {#m}

indicator

(Optional). A high-frequency indicator series to aid the construction of the resulting timeseries, by providing the seasonal patterns. When using an indicator, choose between the olsette, cholette or denton methods.

method

(Optional). Choose between:



total: The sum of the high-freq values is equal to the low-freq value. Example: an annual value of 100 will be split into four quarterly values of 25 each.

avg: The average of the high-freq values is equal to the low-freq value. Example: an annual value of 100 will be split into four quarterly values of 100 each.

(repeat: Obsolete: use avg.)

(prorate: Obsolete: use total.)



Note: if no method is indicated, default is avg. You can alter the default with option interpolate method = ... ; (cf. OPTION).

indicatormethod

(Optional). When using an indicator, choose between these metods, all of the "Denton family":



olsette: Unless you have very few observations in the low-frequency series, this is the recommended method to use with an indicator series. The method is more foolproof than both the cholette and (especially) the denton methods. With olsette, the collapsed high-frequency indicator series is first collapsed into a low-frequency indicator, which is OLS-fitted on the low-frequency series (+ a trend and a constant term), following which an adjusted low-frequency indicator series is constructed. The adjusted indicator series is then used instead of the "real" indicator series, using the Cholette method. The Olsette method is invariant regarding the relative and absolute levels of the high-frequency indicator versus the low-frequency series. The method may fail with an OLS error if for instance the OLS algorithm has too few degrees of freedom (too few low-frequency observations), and also -- but much more rare -- if the indicator series collapses exactly into a constant series (in that case, OLS also fails).

cholette: The Cholette method is essentially an "improved Denton", fixing the Denton problem of spurious movements in the beginning of the resulting series, if the levels of the low-freq and indicator series do not match. The method tries to minimize the absolute changes in differences between the indicator series and the resulting series, while preserving total- or avg-aggregation. The Cholette method is invariant regarding absolute levels of the high-frequency indicator versus the low-frequency series (but it is not invariant regarding the relative levels of the high-frequency indicator versus the low-frequency series).

denton: This is the original Denton method, cf. this paper (reproduces the delta(x-z) column on page 101). The Denton method is sensitive regarding the relative and absolute levels of the high-frequency indicator versus the low-frequency series. So in general, use olsette or cholette rather than denton, because with Denton, you risk spurious movements at the start of the resulting series. Denton should only be used if Olsette/Cholette uses too many computer ressources, which would only happen with extremely long timeseries.



When using an indicator, you must at the same time choose both a method and an indicatormethod, for instance interpolate x!= y!a indicator=z!avg cholette;.



Note that during calculations with indicators, no matter TIME settings or local <...> period, the method will always use the longest possible period where there is data for both the low-frequency and high-frequency input series. In the interpolate() function variant, TIME or <...> period only affect which periods are updated after the calculation is performed.)

print

(Optional). When using an indicator together with the olsette method, the OLS regression is printed on the screen for the user to inspect. With many INTERPOLATE statements, this option will slow down Gekko considerably due to the printing.



If a variable without databank indication is not found in the first-position databank, Gekko will look for it in other open databanks if databank search is active (cf. MODE).

Looping: with a list like for instance #= x1, x2;, you may use interpolate {#m}!q = {#m}!a; to interpolate x1!a into x1!q, and x2!a into x2!q.






Examples



Use this to convert frequency:



reset; time 2018 2020;
x!= 2, 3, 4;
interpolate x!= x!a;
prt <n> x!a, x!q;



Since the method is avg as default, this will create the quarterly timeseries x!q where each quarterly observation in x!q is the same as the corresponding annual observation in x!a. Alternatively, you use total option (interpolate x!= x!a total;). Now, the quarters will sum up to x!a instead of just being repeated.



Note that when interpolating from a, q or m frequency into w (weeks), the weeks at the start/end will often become missing values, when the weeks do not fit exactly inside the years, quarters or months. Consider this example:



reset; option freq m; time 2017m1 2017m2;
x!= 1;
interpolate x!= x!m total;
option freq w; time 2016w52 2017w9;
prt<n> x!w;
prt sumt(<2017w1 2017w8>, x!w);  //1.8963


//                    x!w
// 2016w52              M //6 missing days
// 2017w1          0.2258

// 2017w2          0.2258

// 2017w3          0.2258

// 2017w4          0.2258

// 2017w5          0.2431

// 2017w6          0.2500

// 2017w7          0.2500

// 2017w8          0.2500
// 2017w9               M  //5 missing days



The data for the months 2017m1 and 2017m2 are interpolated into the weeks 2016w52-2017w9. Week #52 of 2016 actually contains January 1, 2017 (a Sunday), but since the six previous days of that week are missing (December 26 to December 31, 2016), the interpolation sets 2016w52 to missing values. Similarly, week #9 of 2017 contains the days February 27 and February 28, but the five subsequent days are missing. The sum is not exactly 2, because one day of January and two days of February are "spilled" (1.8963 = 2 – 1/31 – 2/28). (Weeks are defined and numbered following the ISO 8601 standard, where days around New Year may belong to week 52, week 53 or week 1. Active 'workdays' will be implemented, omitting for instance weekends and holidays. For now, see the getSpecialDay() function).



Olsette/Cholette



The following is an example of using the Cholette method. (Note: changing the method to olsette here will result in an error, because the collapsed indicator is a constant annual series with value 400, which makes the OLS regression fail. Changing the method to denton gives almost the same result, because the series are well aligned level-wise).



//Cf. example Denton: Adjustment of Monthly or Quarterly Series to Annual Totals: An Approach Based on Quadratic Minimization (https://www.oecd.org/sdd/21779760.pdf). The results below differ a tiny bit from

the values in the article, because the Cholette method is used here. To reproduce exactly, use

"interpolate z2!q = y!a indicator=z!q total denton;"


reset;
time 2001 2005;
y!= 500,                400,                300,                400,                500;
z!= 50, 100, 150, 100,  50, 100, 150, 100,  50, 100, 150, 100,  50, 100, 150, 100,  50, 100, 150, 100;
interpolate z2!= y!a indicator=z!q total cholette//Or: z2!q = interpolate(y!a, z!q, 'total-cholette');
<n> z2!q.collapse(), y!a, z!q.collapse(); //Shows that z2!q sums up to y!a, but z!q does not.
prt <n> z2!q; //z!q.collapse() should be comparable to y!a levels!

 --> result:
                z2!q

 2001

 q1          79.2980

 q2         127.5788

 q3         174.1404

 q4         118.9828



 2002

 q1          62.1060

 q2         104.5129

 q3         146.2034

 q4          87.1777



 2003

 q1          27.4355

 q2          72.5645

 q3         122.5645

 q4          77.4355



 2004

 q1          37.1777

 q2          96.2034

 q3         154.5129

 q4         112.1060



 2005

 q1          68.9828

 q2         124.1404

 q3         177.5788

 q4         129.2980

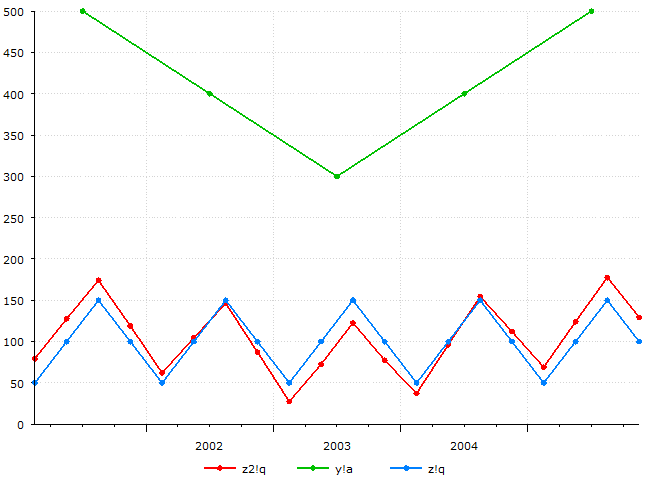

clip0163



The above can be exactly reproduced with the tempdisagg package in R:



library(tempdisagg)
d.<- ts(rep(c(50, 100, 150, 100), 5), frequency = 4)
d.<- ts(c(500, 400, 300, 400, 500))
a1 <- predict(td(d.+ d.q, method = "denton-cholette", criterion = "additive", h = 1))
print(a1)

--> result:



       Qtr1        Qtr2        Qtr3        Qtr4

1  79.29799   127.57880   174.14040   118.98281

2  62.10602   104.51289   146.20344    87.17765

3  27.43553    72.56447   122.56447    77.43553

4  37.17765    96.20344   154.51289   112.10602

5  68.98281   124.14040   177.57880   129.29799








Note



If a frequency indicator is omitted, Gekko will use the current frequency.



Interpolate with total option and collapse with total option are in a sense mirror images, and for example for an annual timeseries x!a, x!a.interpolate('total') will disaggregate into quarters, and x!a.interpolate('total').collapse('total') will aggregate the quarters back to the original annual series (this identity does not work if you are interpolating to and collapsing from weekly data).



The olsette method is named both after OLS and Jes Asger Olsen.






Related options



OPTION interpolate method = repeat; [total|avg]






Related statements



COLLAPSE, SMOOTH
